UPS (uninterruptible power supply)

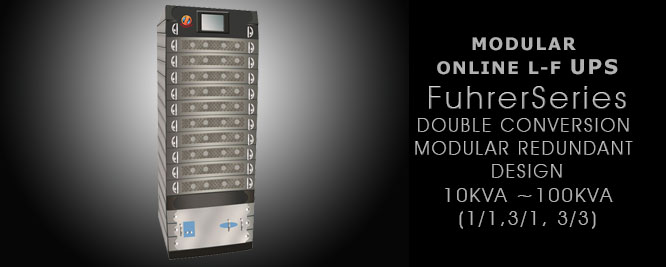

Fuhrer Series 10KVA ~100KVA (1/1,3/1, 1/3, 3/3)

UPS For Mission Critical & IT, Industrial Equipments

MODULAR ONLINE DOUBLE CONVERSION UPS

Fuhrer Series is a Multi-Standard Modular High frequency technology Parallel redundant UPS system. Fuhrer UPS set of today's most advanced technology application achievement, has the most advanced and sophisticated technology, with innovative excellence concept focusing on the development of the global power, in order to push UPS power fields of technological progress and the birth of high-end products.

The system is composed of three modules: Display & Control Module, Inverter Module (1 to 10 inverter modules of 10kVA each) and Bypass Module. The Inverter Module is designed for hot-swap-able. Modular design ensures flexible options for expansion. Redundant UPS technology allows users to scale their power capacity and provide continuous and highest availability. Great power density ensures a small footprint and low heat dissipation. Rich management and communication functions ensure a friendly man-machine conversation interface.

Energy Saving

Compared with traditional UPS, which efficiency less than 90% about 10% is wasted. Fuhrer inverter efficiency is about 96%. It is designed for lower heat emission, less energy waste.

Application

Large mainframe oriented data centers Computer rooms Small mainframe Mini computers Centralized or clustered servers Telecommunications applications Medical analysis equipment such as MRI and CAT scanners Laboratory instrumention Mission critical customized applications

Hot Swappable

Hot swappable module can be added or removed online. There is no need for technical personal to perform the job . It is safe and convenient for maintenance and repair as no need to bypass the UPS.

Parallel System

Fuhrer modular UPS has the characteristics that it has the independent power and control sections. Each module is an dependent UPS. It adopts the centralized multiple parallel N+X format. It's simple for system expansion with little fault points .It provides load with N+1 to N+X levels of protection. The maximum can be expanded to 100kva.

Easy Expansion

With the upgrade of customers' load requirement the original designed UPS may not be able to meet the demand. According to the traditional UPS system, we must replace with a new and higher capacity UPS system for customers. But for Fuhrer modular UPS there is no need to replace the whole UPS, but only adding the required number of modules for expansion, it saves customer's costs for initial equipment purchasing and future expansion.

Green Power

The level of harmonic pollution of fuhrer is very low, input current THD < 3%, Input PF above 0.999, This reduces more pollution to main and power loss than equipment traditional UPS.

Display module

Can store 1000 event records The multilevel decentralized control technology, online replacement does not affect the system operation Monitor displays four operating interface (responsible for UPS power supply system parameters of display, communication, alarm and various management functions) such as , System data (SYSTEM) , Module data (UPS MODULE) , Historical event logging (HISTORY) , Function settings (SETUP) Communication design (meet ups local management and remote management requirements) ,RS232, RS485 communication port ,Multi- channel dry contact outputs Optional SNMP card.

Inverter module

Capacity: 10KVA On-line exchange technology, ensure that the output quality The multilevel decentralized control technology, online replacement does not affect system operation, can be completely suppressed in various power surge on the impact of the device and load Equipped with perfect protection function and intelligent communication interfaces effective module dustproof design , IP protection class (IP30) Front protection mesh and filters available online the demolition of the cleaning can be used in harsh environment.

Standard

EN62040-1-1 (Safety)

Conducted Emission: EN50091-2

Radiated Emission : EN50091-2

EMSEN61000-4-2(ESD) …..…….Level 4

EN61000-4-3 (RS)………….....…Level 4

EN61000-4-(EFT)……….………..Level 4

EN61000-4-5(Lightning surge)...Level 4

EN61000-2-2 (Immunity to low Frequency signal)

Multi-setting

According to input power condition, user can set up the UPS configuration with 4 kinds of working model (3 phase in & 3phase out, 3 phase in & 1 phase out, single phase in & out, single phase in & 3 phase out )

Bypass Module

High reliability, overload capacity: 1000% for one minute The switching time of less than 1ms Possess very strong post, interlock, protection, and other functions Equipped with RS485 communication function Replacement does not affect the power supply to the load

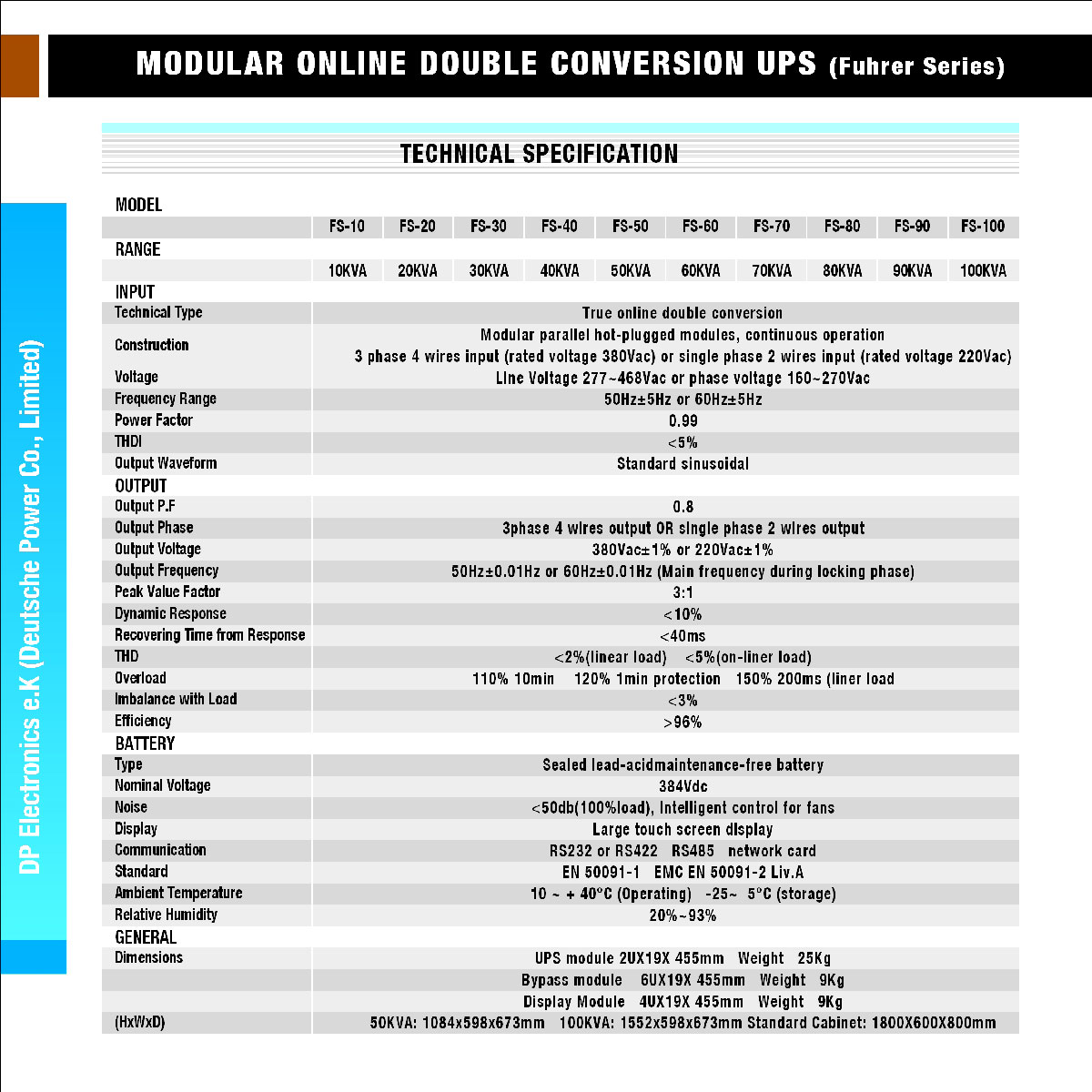

click Here for Technical Specification
