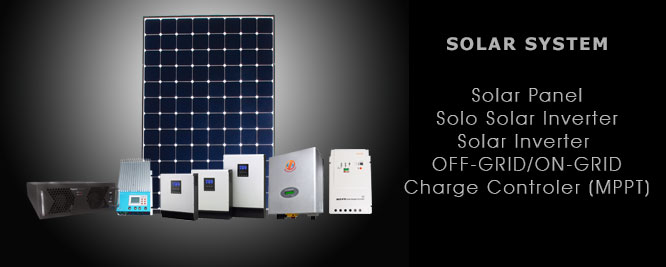

Solar System

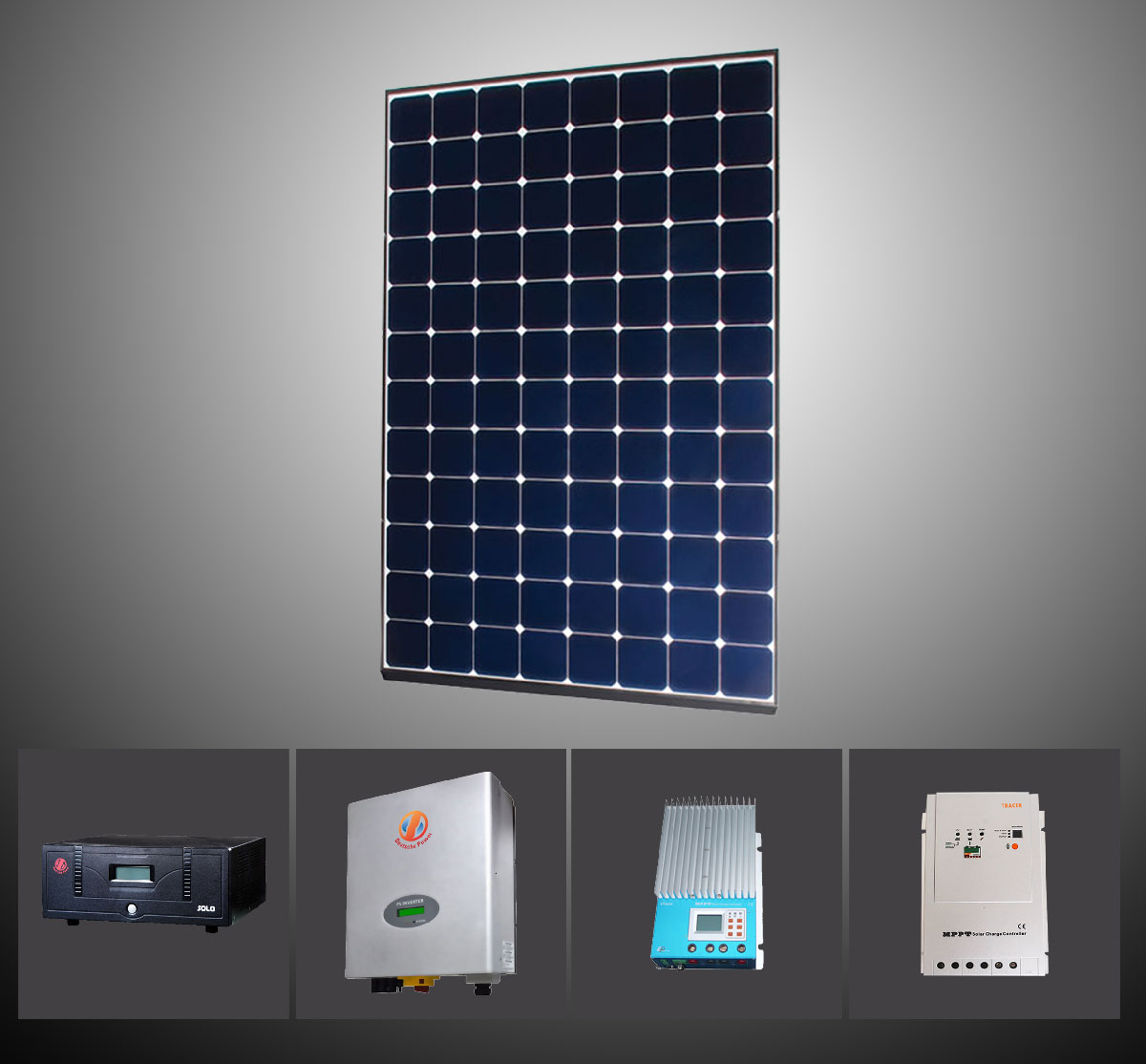

“Deutsche Power” provides a complete product portfolio (mono & poly) with various power outputs.Its modules are covered by special PV (PHOTOVOLTAIC) module insurances from Zurich Insurance and other international insurance company to guarantee the benefit of PV investors and PV module users.

All Deutshe Power (Topray) modules are plus power tolerance only to ensure the high reliability of power output. Deutsche Power (Topray) proprietary PV glass design improves module’s oblique irradiance performance and enhances module yield in low-light and medium-angle- light condition. All Deutshe Power (Topray) modules can withstand high level of wind loads (2400 Pa) and snow loads (5400 Pa).

Key Features:

Plus power tolerance (0-3%) to ensure the high reliability of power output.

 Modules certified by TÜV to withstand high level of wind loads (2400 Pa) and snow loads (5400 Pa)*.

 Anti-reflective, hydrophobic layer of module surface (proprietary 800°C online coating technology) improves light absorption and reduces surface dust.

Easy installation and minimal maintenance with compatibility to industry standard inverters and mounting systems.

Junction box and bypass diodes guarantee the modules free of overheating and “hot spot effect” Large LCD Display.

Modules’ excellent performance under low light environments (mornings, evenings, and cloudy days) create better kWh/kW ratio and produce average 2-3% more electricity in the field.

Click here for SOLAR PANEL, Technical Specification

Photovoltaic Inverter (OFF-GRID)

High Efficiency Integrated solar power system. SM Series Inverter With MPPT Solar Charger.

Integrated solar power system

Integrated solar power system, combined with all the basic elements for a total solar solution: controller, inverter, AC bypass, solar and DC d terminal, with protecting breakers, friendly user interface and LCD display. No installation work and one button to start up.

Auto- Switch

Auto- Switch function could smoothly transfer the load to another back up source, even if whichever of the AC input or inverter drops. Two back up sources are allowable and supply the load interruptedly.

High Efficiency

High Efficiency In view of system capacity and the total ownership cost, DC bus voltage is designed (12V/24V/48V/96V/110V) to reduce power lost and work with the optimized efficiency.

Inrush withstand

Inrush withstand Based on low-frequency transformer design, the inverter could withstand high inrush load current, which could greatly improve the system reliability, especially for pump or motor load (washing machine, microwave oven ex.)

Pure Sine-wave

Pure Sine-wave output has greatly improved the load compatibility. All the fans, pumps, icebox, TV, lamp and so on could be supported.

Key features:

Pure sine wave inverter
Selectable input voltage range for home appliances and personal computers
Selectable charging current based on applications
Configurable AC/Solar input priority via LCD setting
Compatible to mains voltage or generator power Auto restart while AC is recovering
Overload and short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Built-in advanced DSP-Controlled MPPT solar charge controller

Click here for Solar-Photocoltaic-Inverter-OFF-GRID, Technical Specification

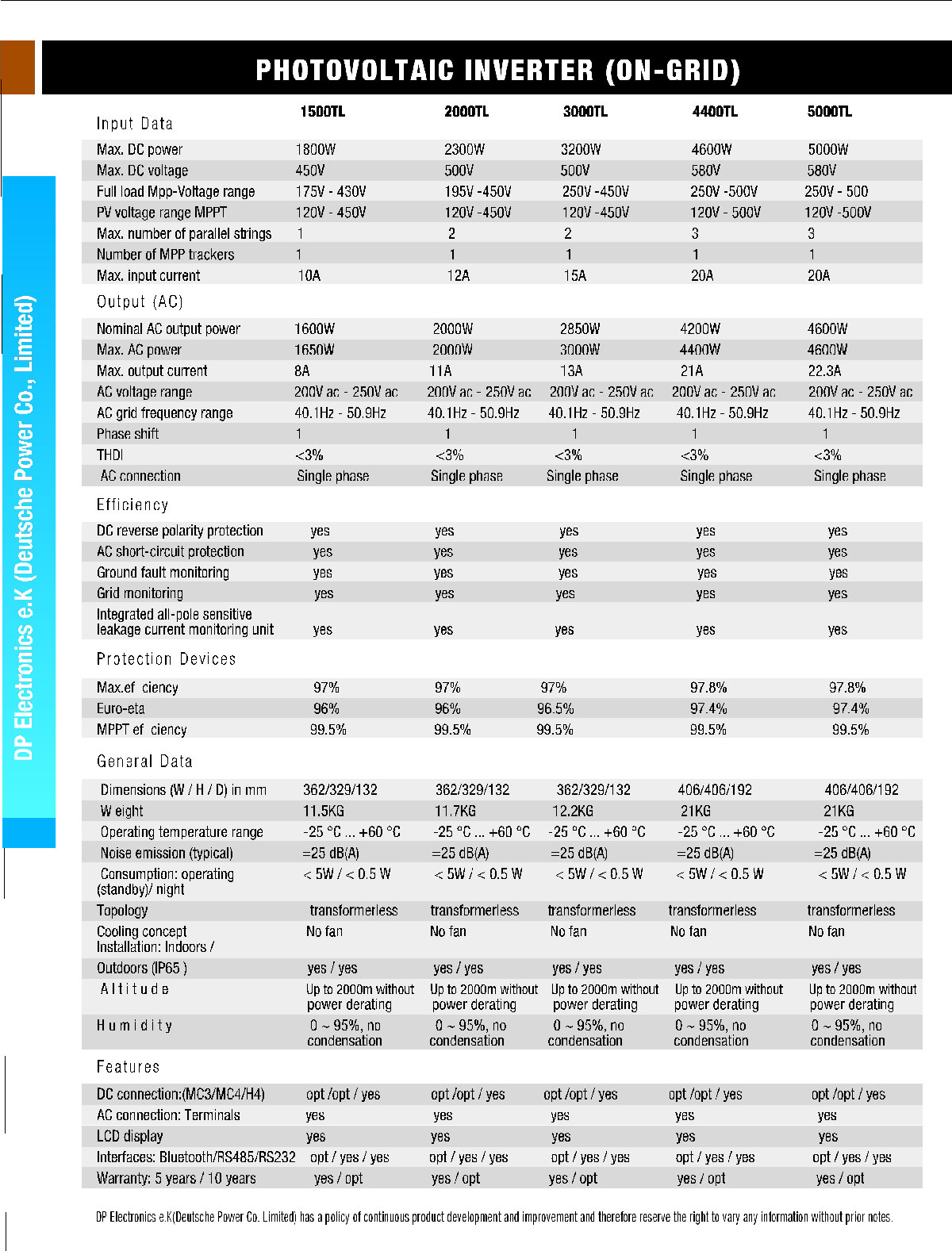

Photovoltaic Inverter (ON-GRID)

On-Grid Solar Inverter With Transformless GT Topology

Leading-Edge Technology

Maximum efciency of 97.8% and wide input voltage range
Internal DC switch
Transformerless GT topology
Compact design MTL - String
Bluetooth technology
Sound control
Easy installation

Click here for SOLAR Photocoltaic-Inverter-ON-GRID, Technical Specification

Photovoltaic Charge Controler

PV Network Mppt Solar Charge Controler

PV charge controler is an advance Maximum Power Point Tracking (MPPT controller for off-grid photovoltaic (PV) Systems. The controller features a smart tracking algorithm that maximizes the energy harvest from the PV by rapidly finding the solar array peak power piont in all the weather condition. The controller provides higher efficiency up to 97% with lower power loss.

 PV charge controler is speacially designed to work with all established PV modules and is optimized for film grid-tied modules.

Features

MPPT technology
Peak conversion efficiency of 97%
High Tracking Efficiency of 99%
Several seconds tracking speed
4 stage charge with PWM output
Nature convection cooling
Full power output in ambient temperature up to 45 C
Temperature compensation
Sealed, gel and Flooded battery option
Widely used, automatically recognize day/night
Diversified load control
RJ45 interface & optional meter
2 years warranty
CE certificate

Electronic Protections

PV array short circuit
Over discharging
Over charging
Load overload
Load short circuit
PV over current
PV reverse polarity
Overheating protection

Click here for SOLAR Photocoltaic-CHARGE-Controler-MPPT, Technical Specification

Photovoltaic Charge Controler (MPPT)

PV Network Mppt Solar Charge Controler

Tracer is an advance Maximum Power Point Tracking (MPPT controller for off-grid photovoltaic (PV) Systems up to 3KW. The controller features a smart tracking algorithm that maximizes the energy harvest from the PV by rapidly finding the solar array peak power piont in all the weather condition. The controller provides higher efficiency up to 98% with lower power loss.

Include up to 450 days data logging by connecting to Ethernet.

Features

12/24/36/48V auto work

Advance MPPT technology

Several seconds tracking speed

High Tracking Efficiency of 99%

Multiphase synchronous rectification technology

Peak conversion efficiency of 98%

DSP & ARM processors architecture ensures high speed and performance

Three kinds of communication ports: RS232, CAN BUS and Ethernet

Three stages charging optimizes battery performance Software update by users

Electronic Protections

PV array short circuit
Over discharging
Over charging
PV over current
PV reverse polarity
Overheating protection

Click here for SOLAR Photocoltaic-CHARGE-Controler-MPPT, Technical Specification
