UPS (uninterruptible power supply)

Elentra Series with Green Mode

Elentra

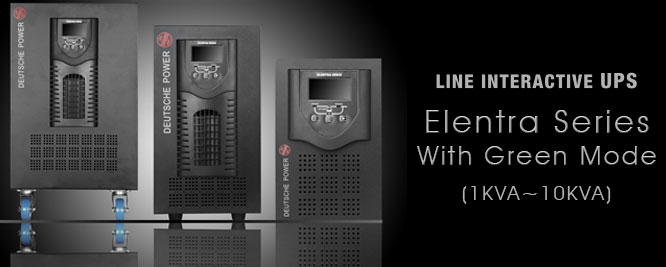

ELENTRA SERIES Green Mode 1KVA to 10KVA
Elentra Series with Green Mode Technology (1KVA~10KVA)



Single Solution for All Domestic and IT Applications with and without Green Mode (Standard & Extended autonomy with sinewave).

ELENTRA Series is a unique one with respect to its features and standards. A Line-Interactive UPS with Sine Wave output and able to run on extended autonomy makes this series distinct from others. ELENTRA Series has the ability to work with all kind of loads from domestic appliances to branded Servers without interruption.

Sinewave Output

ELENTRA Series is a line interactive UPS which provides pure sinewave at the output.Due to its sinewave output high critical server and other sophisticated equipments can be connected without any fear.

Technology

ELENTRA Series uses line interactive technology to prodive a basic level of protection. This topology includes a transformer in series between the utility power source and the load, enabling the UPS to “interact” with the mains.

Extended Runtime Capability

ELENTRA Series coms with standard (internal battery) and to protect critical devices through extended blackouts, the ELENTRA Series utilizes external battery pack that can be daisy-chained in unlimited quantities to provide a virtual unlimited amount of battery run time.

Fast Battery Recharge

ELENTRA Series has the ability to enhance battery charging amperes from 5A~20A through software the maximum recharge time for depleted is 8 hours, no matter how many battery packs are installed on a UPS.

LCD

ELENTRA Series has LCD in its front panel for easily viewing of different feature directely from the UPS LCD. This LCD displays input /output voltages, input/output frequency, battery capacity , faults and many others feature can be view.

Standards

Security : CH0054132-2000, Conductive Disturbance: GB9254 1998/EN55022 CLASS B Video Frequency Disturbance: GB9254 1998/EN55022 CLASS A

Domestic Applications

Work Stations

Servers

Motorized Load

Hubs, Routers

Network stations

Gateways & PABX

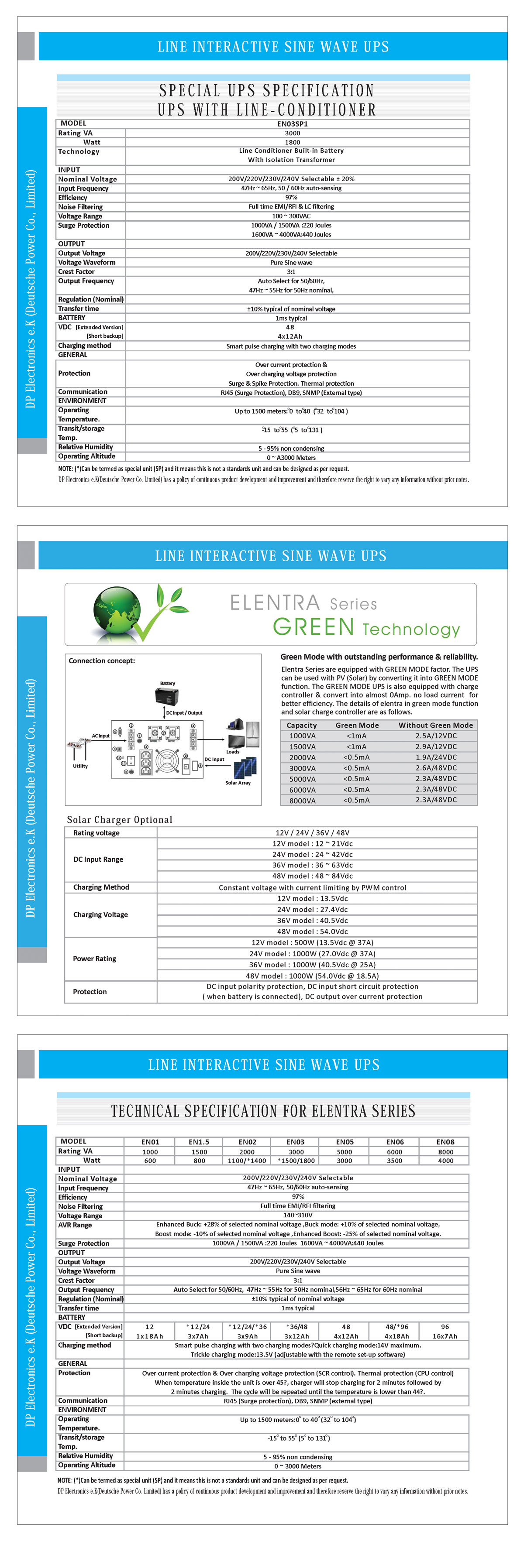

click Here for Technical Specification
